BORE MOTOR – AUTOMATIC WATER LEVEL CONTROLLERS

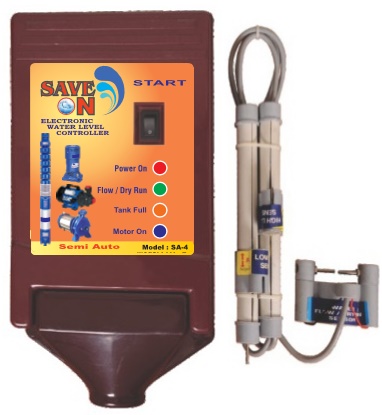

SEMI – Automatic water level controller – Jet/Mono Block/ Compressor/ Submersible
FEATURES:
- Manual ON and Auto OFF controller
- Real time DRY RUN protection available
- Dry run cut off in 3 Minutes while starting and 30 seconds while running
- Indication for Power ON, Flow/Dry run, tank High level and Motor status
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for JET motor, Compressor motor, Open well submersible and Bore Submersible (Both single phase and three phase)
ECO – Automatic water level controller – Jet/Mono Block/ Compressor
FEATURES:
- Auto ON and Auto OFF controller
- Indication for Power ON, High level, Low level and Motor status
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for JET motor, Compressor motor & Open well submersible motor.
- Fit for Switch or MCB control motors
OW – Automatic water level controller – Jet/Mono Block/ Compressor/ Open well
FEATURES:
- Auto ON and Auto OFF controller
- Real time DRY RUN Prevention
- Dry run cut off in 3 Minutes while starting and 30 seconds while running
- Indication for Power ON, Flow/DRY RUN, High level & Low level
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for JET motor, Compressor motor & Open well submersible motor.
- Fit for Switch or MCB control motors

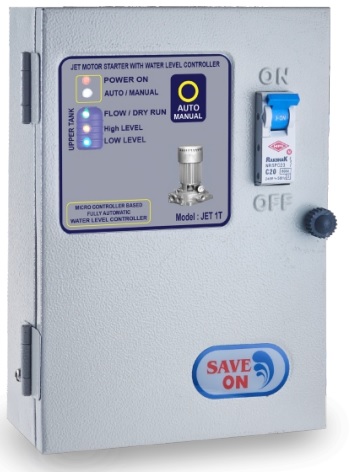

1T – Fully Automatic water level controller – Jet/Mono Block/ Compressor/ Open well
FEATURES:
- Auto ON and Auto OFF controller
- Real time DRY RUN Prevention
- Dry run cut off in 3 Minutes while starting and 30 seconds while running
- One hour Auto reset when Dry run cut off happens. No need of manual reset.
- Indication for Power ON, Flow/DRY RUN, High level & Low level
- 16 A MCB for Over load & Short circuit prevention
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: Powder coated
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for JET motor, Compressor motor & Open well submersible motor.
- Can be used us Open well submersible starter
- Fit for Switch or MCB control motors

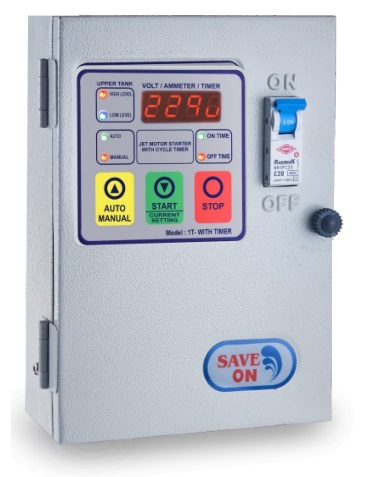

1T with Timer – Fully Automatic water level controller – Jet/Mono Block/ Open well
FEATURES:
- Auto ON and Auto OFF controller
- Current based DRY RUN Prevention
- Dry run cut off in 30 seconds while running
- Adjustable cyclic timer operation. (on time and off time setting)
- Digital display shows Voltage, current, time and type of fault occur (OL and UL)
- Indication for Power ON, Auto/Manual, High level & Low level, ON & OFF time.
- 16 A MCB for Over load & Short circuit prevention
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Display: 1.5” 7 segment LED Display
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: Powder coated
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for JET motor, Compressor motor & Open well submersible motor.
- Can be used us Open well submersible starter
- Fit for Switch or MCB control motors

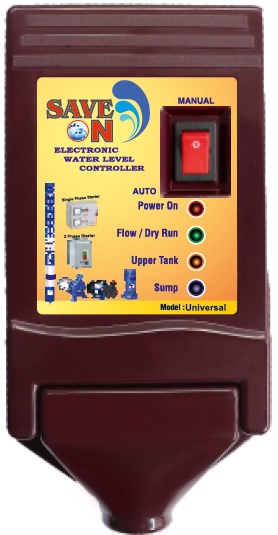

UNIVERSAL – Fully Automatic water level controller – Fit for all types of water pumps
[SUBMERSIBLE PUMP CONTROLLER]
FEATURES:
- Auto ON and Auto OFF controller
- Real time DRY RUN Prevention
- Dry run cut off in 3 Minutes while starting and 30 seconds while running
- One hour Auto reset when Dry run cut off happens. No need of manual reset.
- Indication for Power Flow/Dry run, Upper tank, Sump tank.
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 40A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for all type of water pumps including submersible motor
- Fit for both single and three phase motors – Commercial model
SUMP MOTOR – AUTOMATIC WATER LEVEL CONTROLLERS

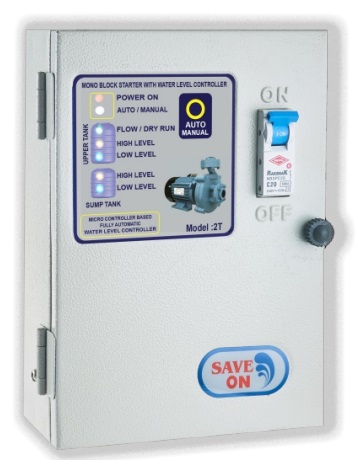

2T – Automatic water level controller – Mono Block / Open well
[Single phase sump motor control]
FEATURES:
- Auto ON and Auto OFF controller
- Real time Dual DRY RUN Prevention
- Dry run cut off in 3 Minutes while starting and 30 seconds while running
- Indication for Power ON, Auto/Manual, Flow/DRY RUN, High level & Low level for OHT & SUMP
- 16 A MCB for Over load & Short circuit prevention
- Auto / Manual Over ride included with additional Reset button
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: Powder Coated
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for Mono block & Open well submersible motor.
- Can be used us Open well submersible starter
- Fit for Switch or MCB control motors

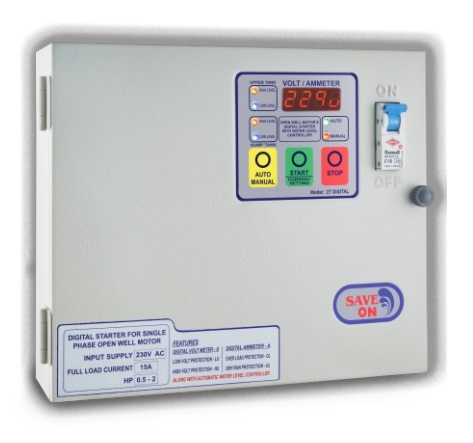

2T Digital – Automatic water level controller – Mono Block / Open well
[Single phase sump motor control]
FEATURES:
- Auto ON and Auto OFF controller
- Real time Dual DRY RUN Prevention
- Dry run cut off 30 seconds while running
- Indication for Power ON, Auto/Manual, Flow/DRY RUN, High level & Low level for OHT & SUMP
- START & STOP push button for manual over ride
- 16 A MCB for Over load & Short circuit prevention
- Auto / Manual Over ride included with additional Reset button
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Display: 1.5” 7 segment LED Display
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for Mono block & Open well submersible motor.
- Can be used us Open well submersible starter at sewage treatment plant
- Fit for Switch or MCB control motors
UNIVERSAL – Fully Automatic water level controller – Fir for all types of water pumps
[Three phase sump motor control]
FEATURES:
- Auto ON and Auto OFF controller
- Real time DRY RUN Prevention for OHT and SUMP
- Dry run cut off in 3 Minutes while starting and 30 seconds while running
- One hour Auto reset when Dry run cut off happens. No need of manual reset.
- Indication for Power Flow/Dry run, Upper tank, Sump tank.
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 40A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for all type of water pumps including submersible motor
- Fit for both single and three phase motors – Commercial model
