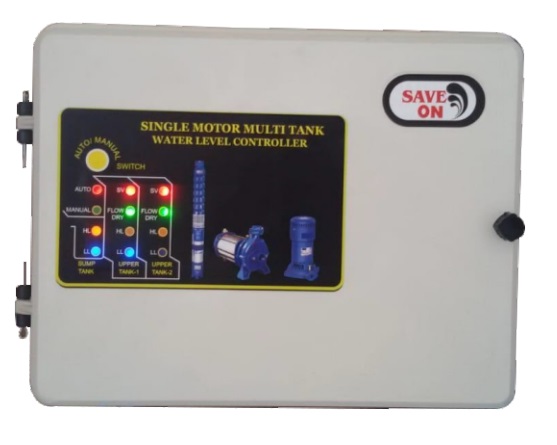

Multi Tank / Multi Motor Controller – Fit for all types of water pump
FEATURES:
- Auto ON and Auto OFF controller
- Real time DRY RUN Prevention for OHT and SUMP
- Controls Multiple tanks up to 4 OHT
- Controls Multiple Solenoid/Motorized valves up to 4
- Indications for Auto/Manual, Low , High, Flow/ Dry run and Sump indication for all tanks limited to 4 OHT and 1 sump
- Multi motor control up to 2 motors alternatively with respect to 24 hours
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 40A for two Motors and 30 A relays for Solenoid/Motorized valves
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for all type of water pumps including submersible motor
- Fit for both single and three phase motors – Commercial model
GSM Based Wireless Water Level Controller
FEATURES:
- Auto ON and Auto OFF controller
- Real time DRY RUN Prevention
- Communication through GSM – Controller added with transmitter and receiver
- Controls Wirelessly
- Controls Multiple Solenoid/Motorized
- Indications for Auto/Manual, Low , High, Flow/ Dry run for all tanks limited to 4 OHT
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 40A for Motor and 30 A relays for Solenoid/Motorized valves
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for all type of water pumps including submersible motor
- Fit for both single and three phase motors – Commercial model

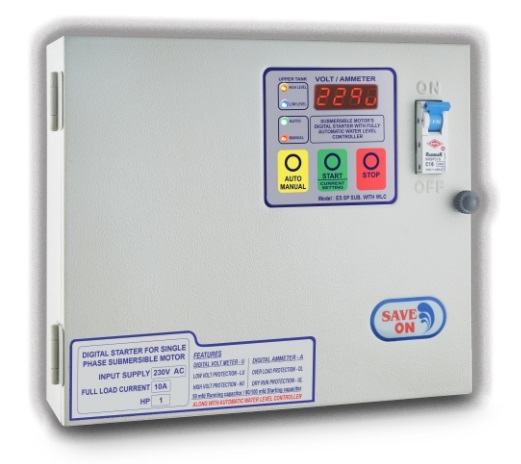

Digital Pump Manager
FEATURES:
- Auto ON and Auto OFF controller
- Current based DRY RUN Prevention
- Starter come level controller
- Controls through wired connection
- Controls single phase submersible motor
- Digital display for voltage & Current
- LED level indication and auto/manual indication
- Protection for over load, under load, over voltage and under voltage
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 40A for Motor
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: Powder coated
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for all type of water pumps including submersible motor
- Fit for Commercial and Industrial purposes
