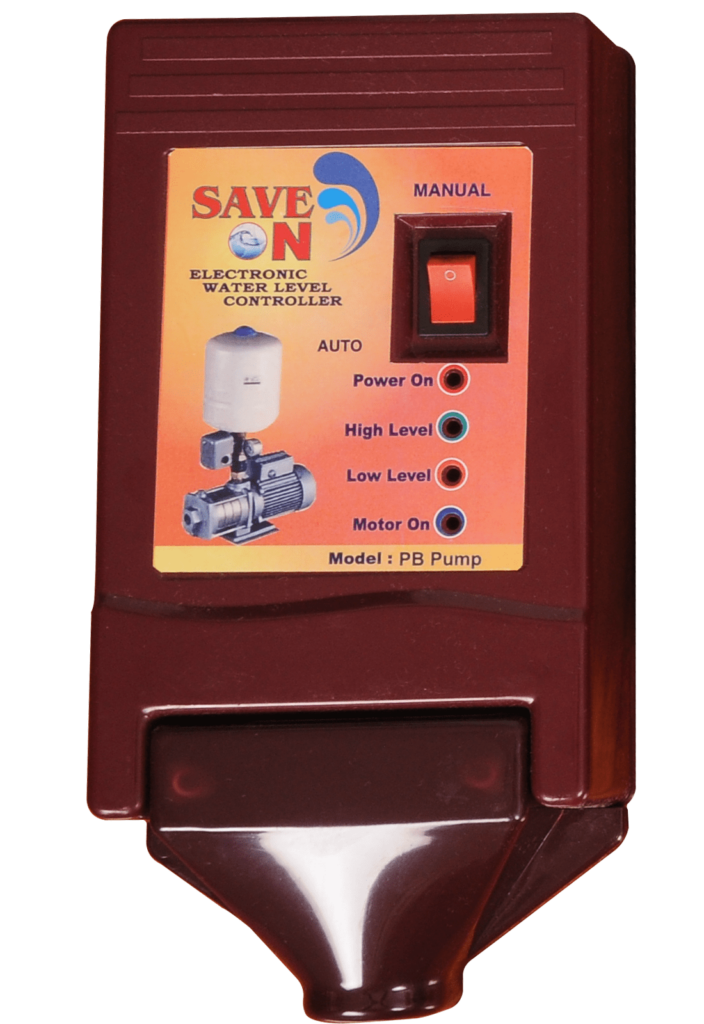

PRESSURE BOOSTER PUMP CONTROLLER
FEATURES:
- Auto ON and Auto OFF controller
- Real time DRY RUN Prevention for pressure booster pump
- Dry run cut off occurs when water level in OHT is at foot valve level of pressure booster pump
- Indication for Power ON, High level & Low level, Motor status
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for Pressure booster pumps

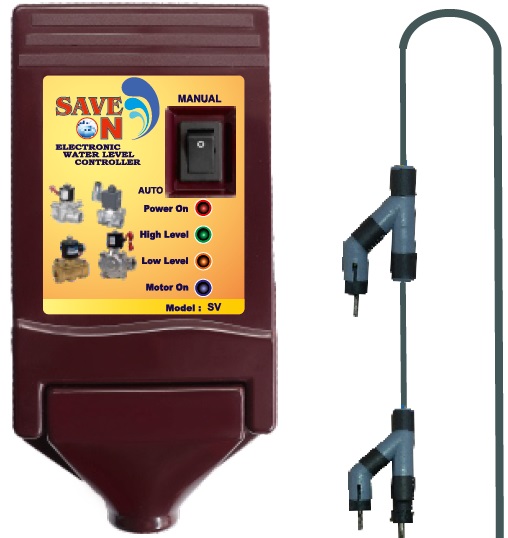

SOLENOID/MOTORIZED VALVE CONTROLLER
FEATURES:
- Auto ON and Auto OFF controller
- Controls 230V Solenoid valves or Motorized valves
- Indication for Power ON, High level & Low level, Motor status
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- Sensors Operating Voltage: 6V High Frequency Sensing
- AC Voltage Regulation: 160V-270V
- Sensors Make: SS304
- Cabin Material: ABS
- Operating Principle: Conductivity
APPLICATIONS:
- Fit for 230V Electrical Solenod or Motorised valves

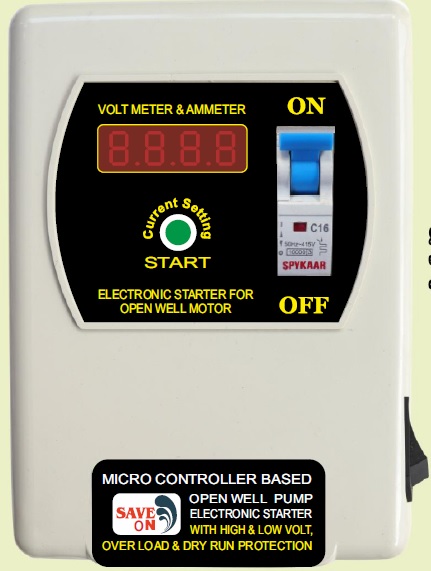

DIGITAL DRY RUN PREVENTER
FEATURES:
- Manual ON and Manual OFF / Auto DRY RUN Cutoff
- Current based Dry run protection
- Digital Indication for Voltage, Current and Fault (OL & UL)
- 16A MCB for short circuit prevention
- Auto / Manual Over ride included
- Customization possible
SPECIFICATIONS:
- Input Voltage: 230V, 50Hz
- Relay : SSD 30A
- AC Voltage Regulation: 160V-270V
- Cabin Material: ABS
APPLICATIONS:
- Fit for all type of electrical motors except submersible and three phase motors

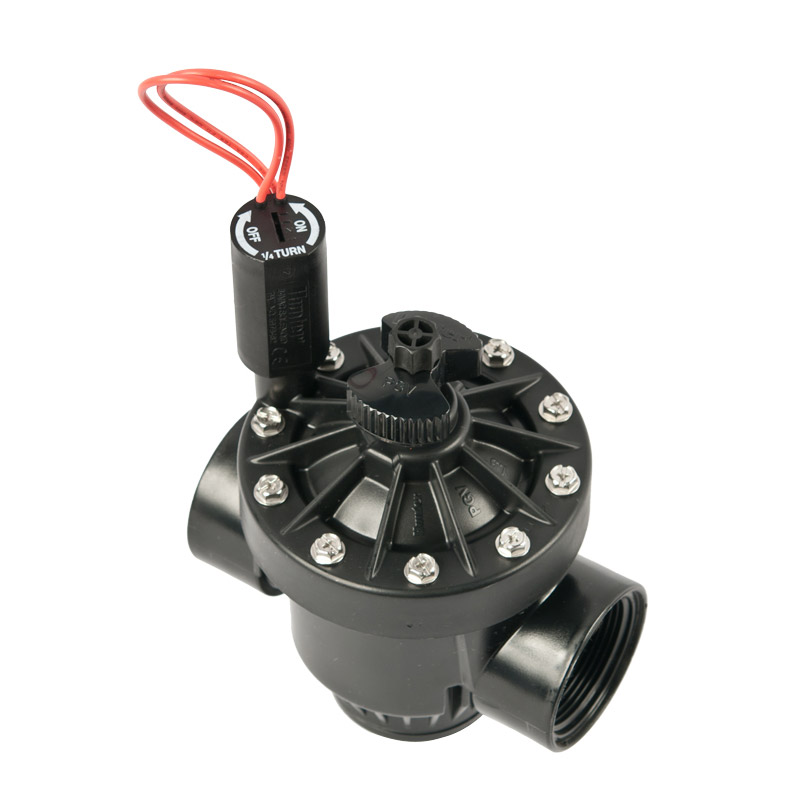

PGV SOLENOID VALVES
KEY BENEFITS
• External/internal manual bleed
allows for quick and easy
activation at the valve
• Double-beaded diaphragm
seal design ensures leak-free
performance
• Captive bonnet screws eliminate
the possibility of lost parts
during disassembly
• Flow control maximise efficiency
and prolongs the life of the system
• Triple-tool bonnet screws are
compatible with standard or Phillips
screwdrivers as well as a nut driver
• Each valve available with globe
or angle configuration for
convenient placement
• Encapsulated solenoid with
captive plunger used on every
Hunter valve provides
hassle-free service
USER-INSTALLED OPTIONS
• Accu Sync™ Pressure Regulator at the valve*
• Reclaimed flow control handle (P/N 607105)
FACTORY-INSTALLED OPTIONS
• 24V AC-Latching Solenoid Coil
• LS: Valve without solenoid
OPERATING SPECIFICATIONS
• Recommended pressure range:
1.5 to 10 bar; 150 to 1000
