Special Controllers Motorised Valves

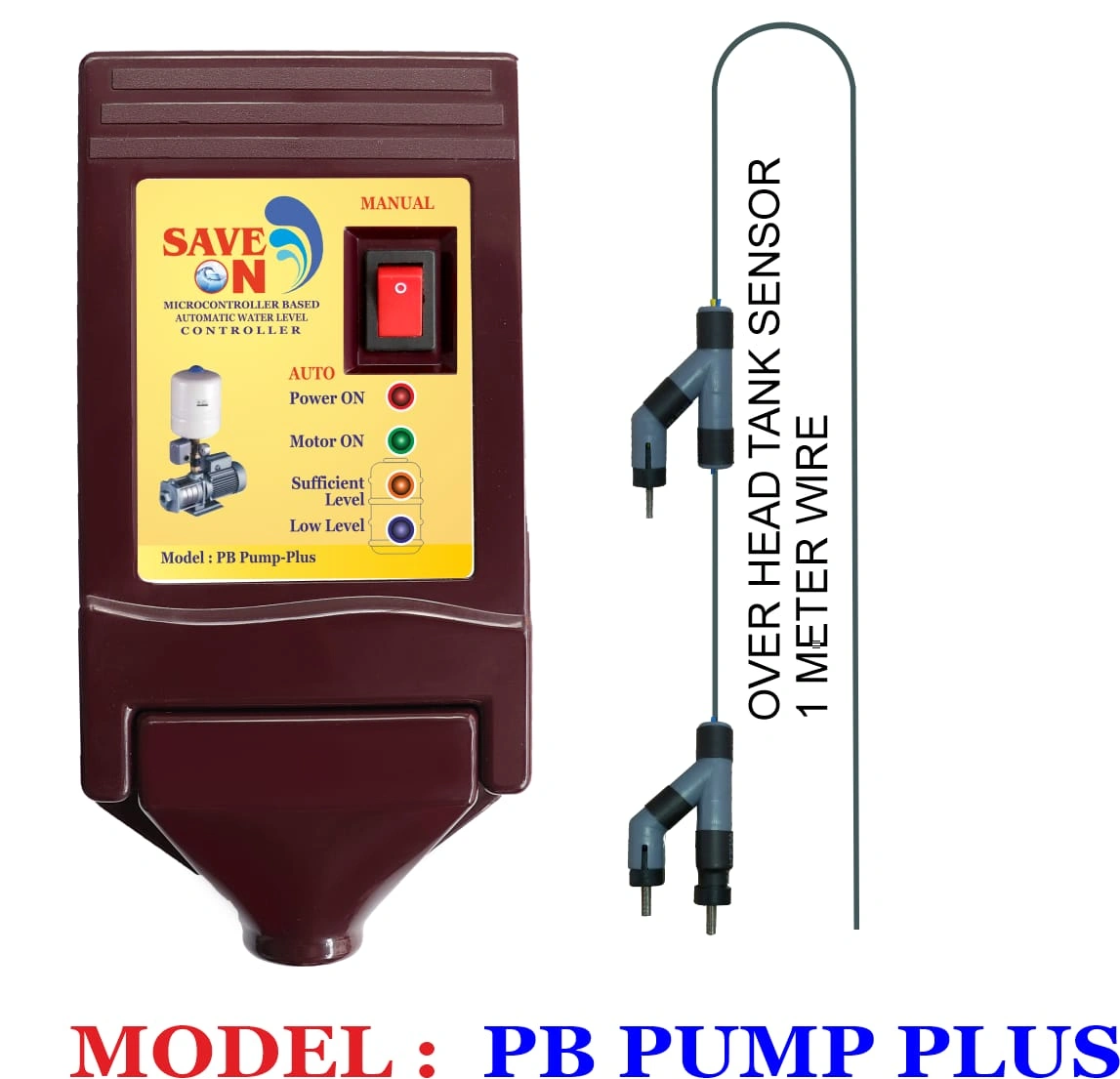

⚙️ Features

• Auto ON and Auto OFF controller
• Real time DRY RUN Prevention for pressure booster pump
• Dry run cut off occurs when water level in OHT is at foot valve level
• Indications: Power ON, High/Low level, Motor status
• Auto / Manual Override, Customization possible

📐 Specifications

• Input Voltage: 230V, 50Hz
• Relay: SSD 30A
• Sensors: 6V High Frequency Sensing
• AC Regulation: 160V-270V
• Sensors Make: SS304, Cabin: ABS
• Operating Principle: Conductivity

🔧 Applications

• Pressure booster pumps in residential & commercial buildings
• High-rise apartments, hotels, irrigation systems

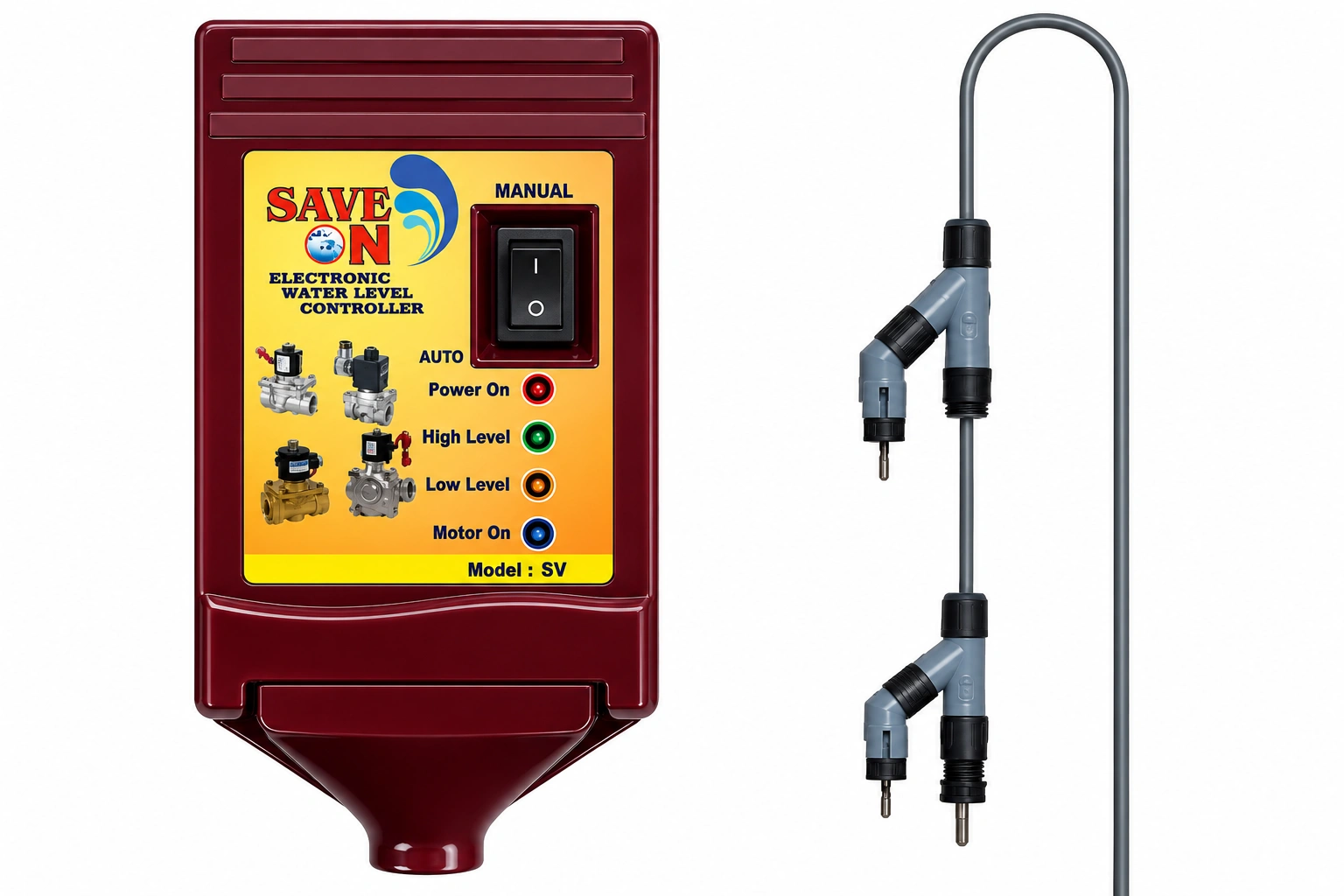

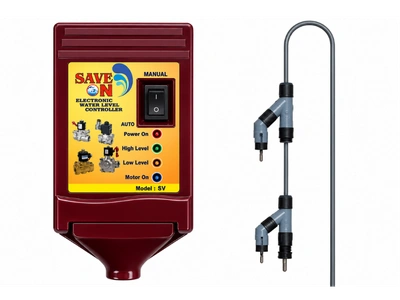

🎛️ Features

• Auto ON and Auto OFF controller
• Controls 230V Solenoid valves or Motorized valves
• Indications: Power ON, High level & Low level, Motor status
• Auto / Manual Override, Customization possible

⚡ Specifications

• Input: 230V, 50Hz
• Relay: SSD 30A
• Sensor Voltage: 6V HF
• Regulation: 160V-270V
• Sensors: SS304, Cabin: ABS, Conductivity principle

🏭 Applications

• 230V Electrical Solenoid / Motorised valves
• Automated irrigation, industrial water lines, tank filling systems

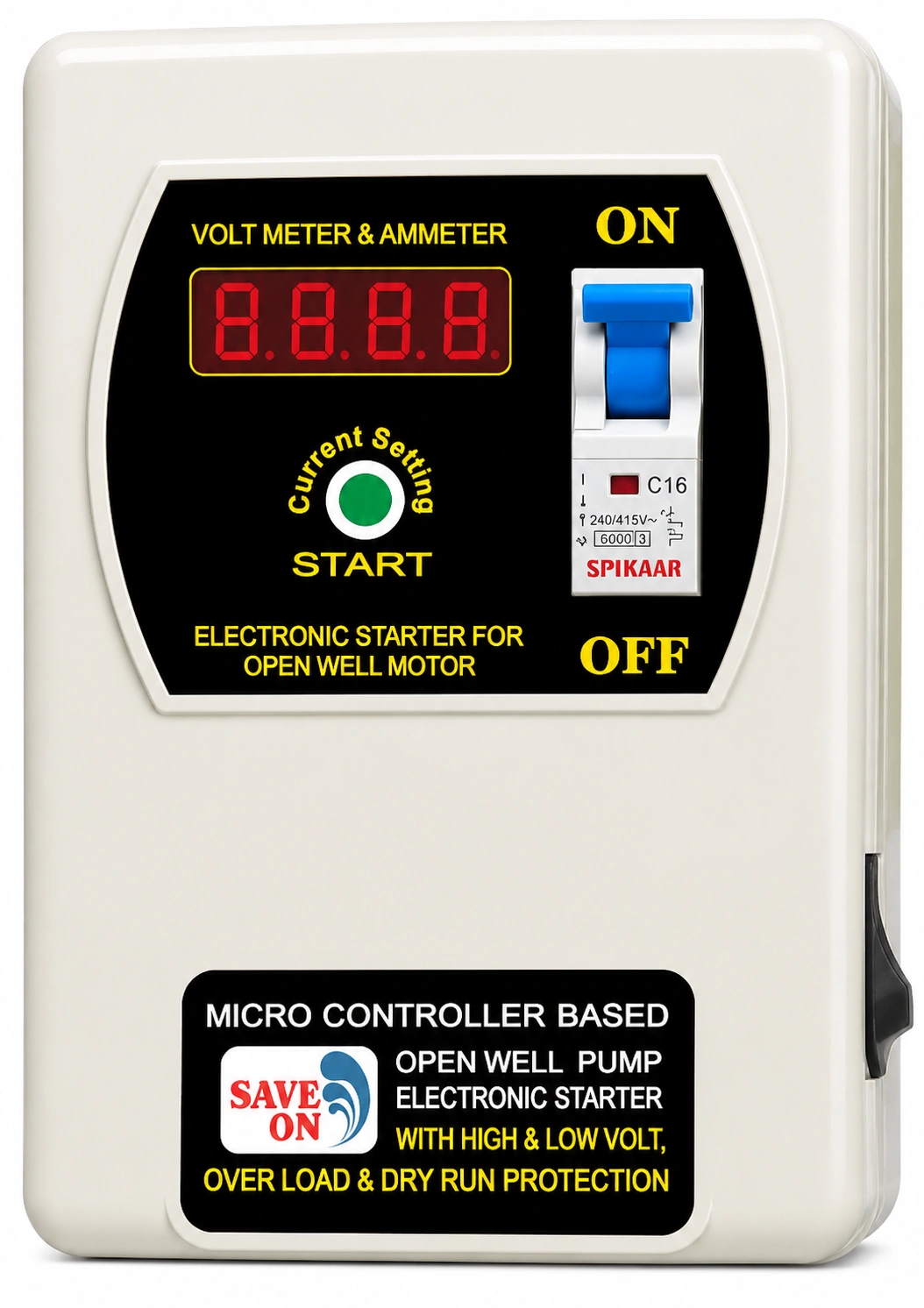

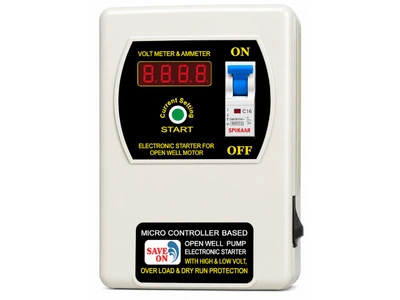

📟 Features

• Manual ON / Manual OFF / Auto DRY RUN Cutoff
• Current based Dry run protection
• Digital Indication: Voltage, Current, Fault (OL & UL)
• 16A MCB for short circuit prevention
• Auto / Manual Override, Customization possible

📊 Specifications

• Input: 230V, 50Hz
• Relay: SSD 30A
• AC Regulation: 160V-270V
• Cabin Material: ABS

🔌 Applications

• All types of electrical motors except submersible and three phase motors
• Mono block, Jet pumps, compressors, open well motors

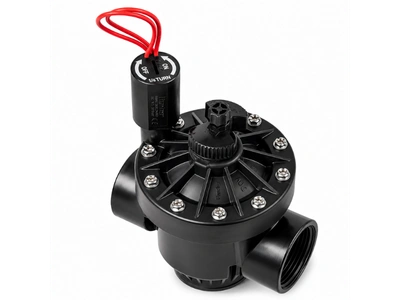

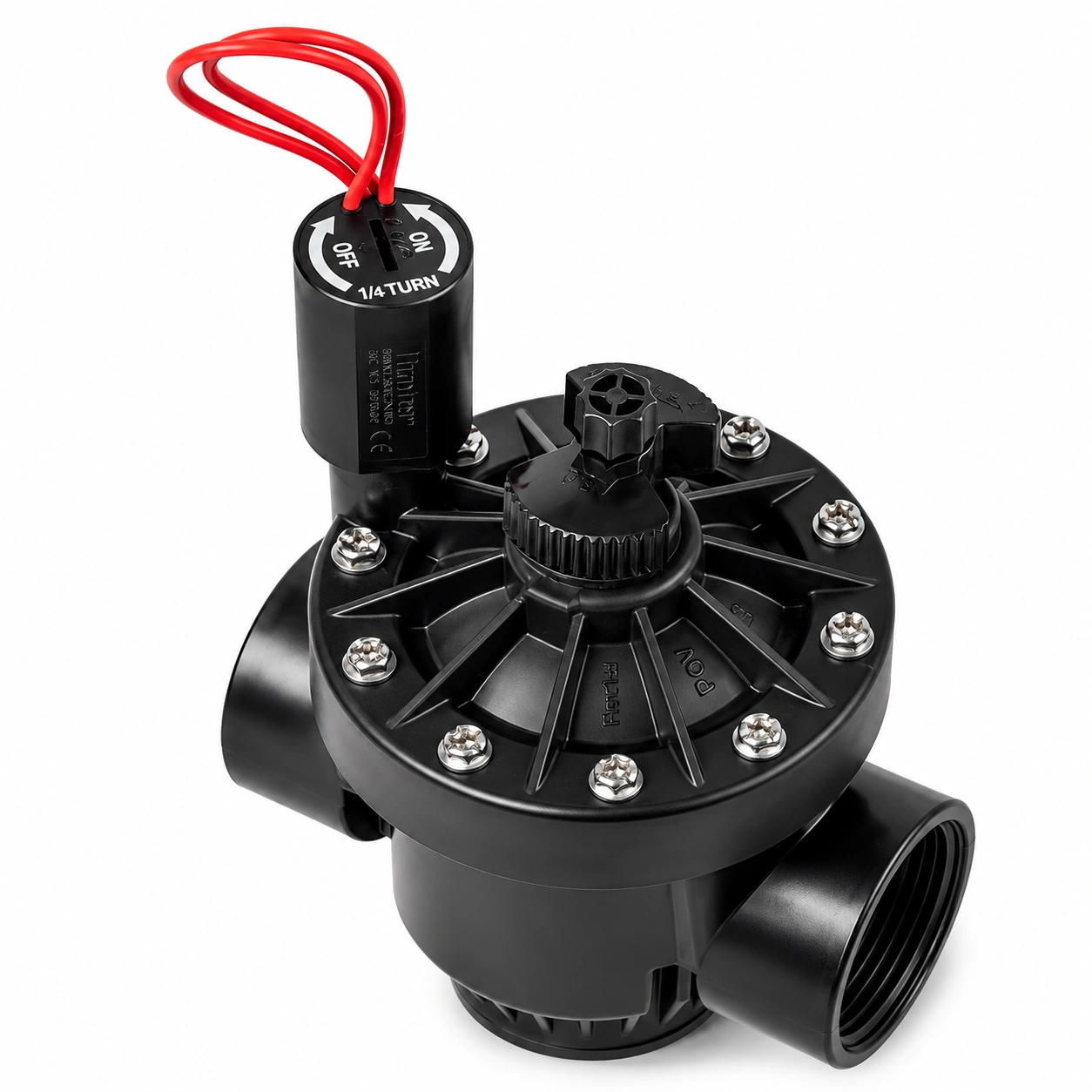

✅ Key Benefits

• External/internal manual bleed for easy activation
• Double-beaded diaphragm seal – leak-free performance
• Captive bonnet screws – no lost parts during disassembly
• Flow control maximizes efficiency & prolongs system life
• Triple-tool bonnet screws – standard/Phillips/nut driver compatible
• Globe or angle configuration for convenient placement
• Encapsulated solenoid with captive plunger – hassle-free service

🔧 User-Installed Options

• Accu Sync™ Pressure Regulator at the valve
• Reclaimed flow control handle (P/N 607105)

🏭 Factory-Installed Options

• 24V AC-Latching Solenoid Coil
• LS: Valve without solenoid

📏 Operating Specifications

• Recommended pressure range: 1.5 to 10 bar (150 to 1000 kPa)
• Durable construction for long-term reliability
• Ideal for irrigation, industrial automation, water treatment
